🥕 Spices & Vegetable Machinery

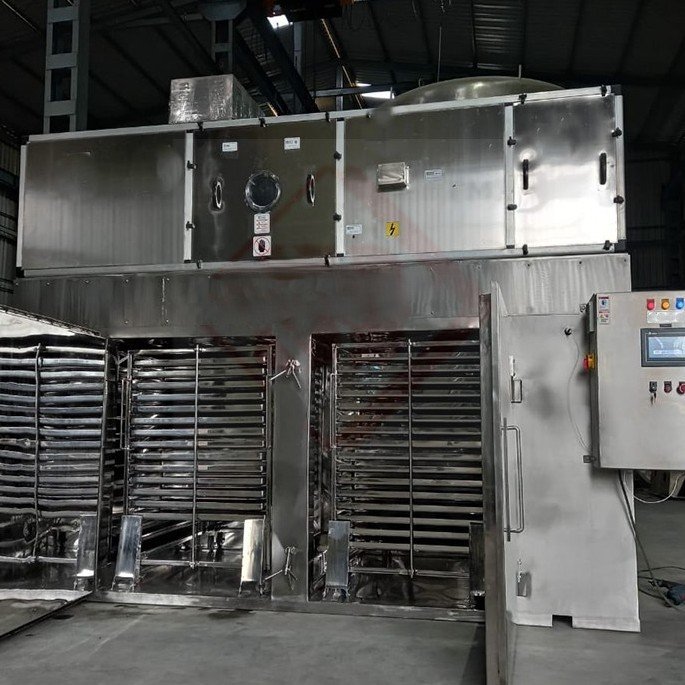

SPICES & VEGETABLES WASHING & DRYING PACKING SYSTEM :

Hot air circulation spice dryer machine is equipped with low noise axial fan and automatic temperature control system. The circulating system is completely sealed, so the thermal efficiency is 35-45%, the highest can reach 70%. Save energy, dry material evenly, low factory price.

evenly, low factory price. Application of Spices Drying Machine Price The drying oven is suitable for drying and dewatering raw materials in pharmaceutical, food, dehydrated vegetables, dried fruits and other industries. Spices:Ginger, red chilli, black pepper, herb, turmeric, tobacoo, moringa leaves and other dry leaves.

Features of Chilli Dryer Machine Price:

  • Heat source can be steam, heat conductive oil, electricity or far infrared. Customers can choose according to their real practical conditions.
  • Operation temperature: steam, 50-140°C. Max.150°C, electricity, 50~350°C. The temperature can be controlled automatically.
  • Use an enhanced ventilation and an adjustable air separation plate to evenly dry the material.
  • The seal property of whole machine is good. Being adopted unique guide rail seal apparatus, the seal property can be guaranteed.
  • There are automatic and computer control system for your choice.
  • o With wide scope of application, it is suitable for drying varieties of materials, so it is general drying equipment.

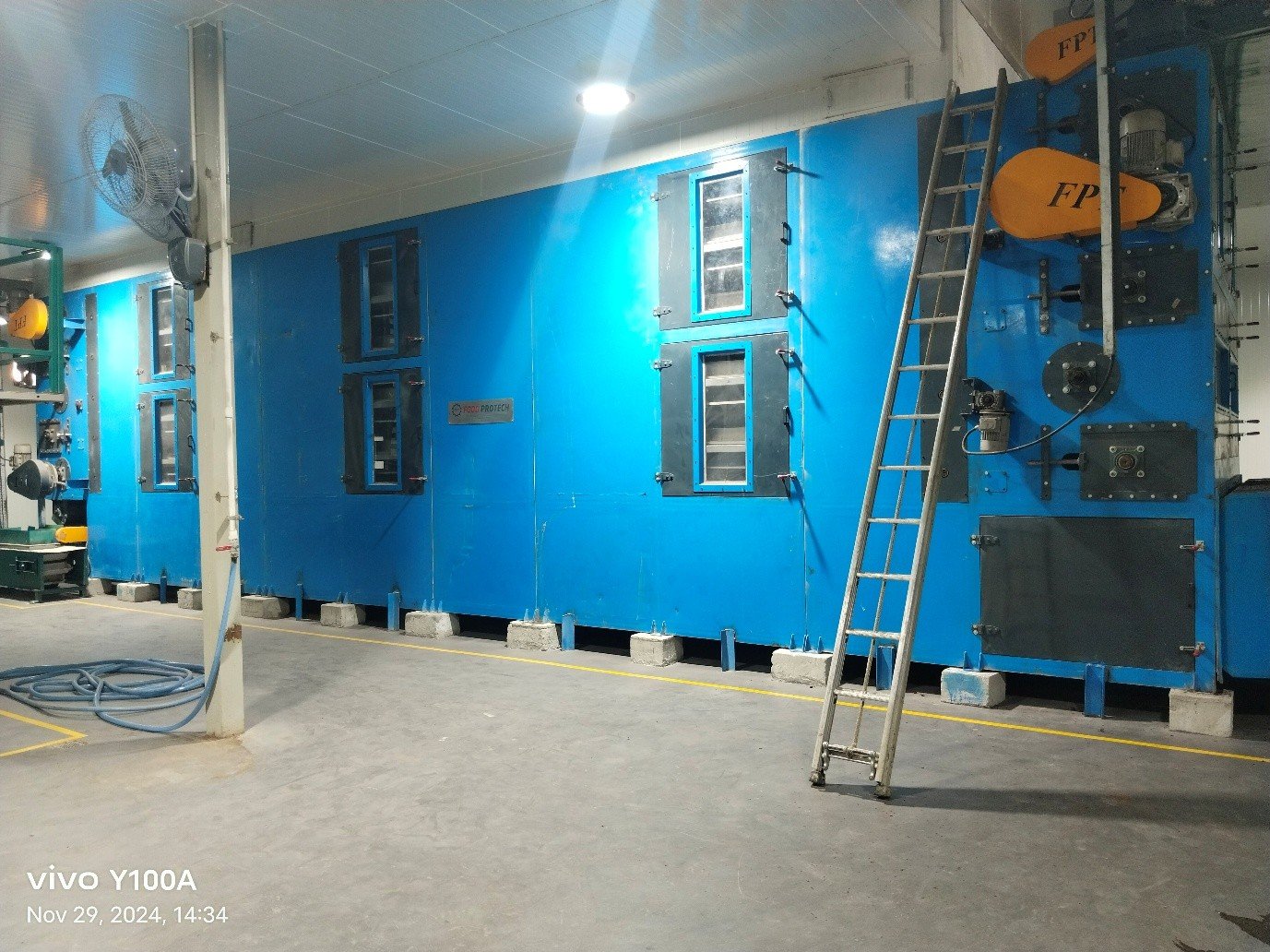

FRUITS & CARADAMOM BELT DRYER

A spices dryer machine is a piece of equipment designed for drying various spices efficiently and effectively. The drying process is essential to reduce the moisture content in spices, thereby preserving their flavor, aroma, and shelf life. These machines are used in the spice processing industry to ensure the quality and longevity of spices.

Features

  1. Transmission belt adopts stainless steel punched hole plate, clean and sanitary, long service life, easy repairing and maintenance.
  2. Swing feeding structure separate the material onto the belt evenly.
  3. Feeding screw to ensure the thickness of material on the belt evenly.
  4. Adopt big pitch transmission chain and full open door, easy cleaning and maintenance.
  5. Main transmission adopts inverter control, duration of stay can be adjusted according to outlet moisture, easy operation, stable running, no high speed transmission device, less fault, long service life.

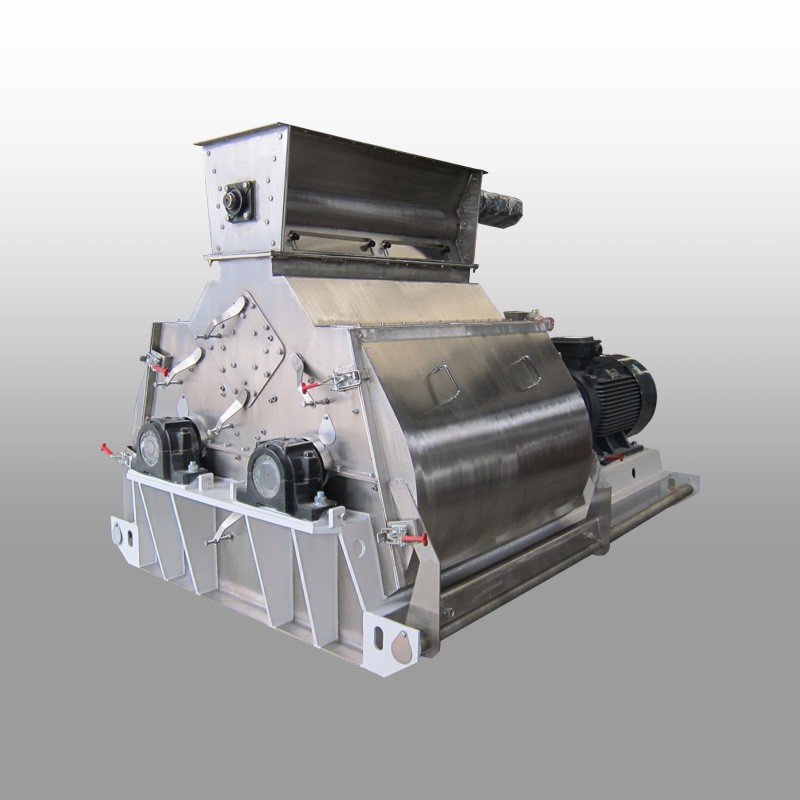

HAMMER MILL Working Principle

The material is evenly fed into the grinding chamber by the feeding system, and is strongly impacted by the high-speed rotating crushing disc, and at the same time, it is subjected to various forces such as friction, shearing, and collision between the static disk and the ring gear, and is finally crushed. The crushing movable disk and static disk can be combined in different structures to meet the crushing requirements of different materials. The structural forms we currently design include: hammer type, pin type, turbine type, and grinding disc type.

Features And Benefits

  1. Hammer type is suitable for pre-crushing and coarse crushing.
  2. The pin type is suitable for brittle, viscous and heat-sensitive materials.
  3. Turbine type is suitable for brittle materials and fibrous materials.
  4. The grinding disc type is suitable for tough and elastic materials,such as plastics.
  5. Hammer type and turbine type generally have a built-in screen to control the fineness of the product.
  6. Explosion-proof design can meet the crushing requirements of flammable, explosive and oxidizable materi
  7. Low temperature design can meet the crushing requirements of heat sensitive materials.

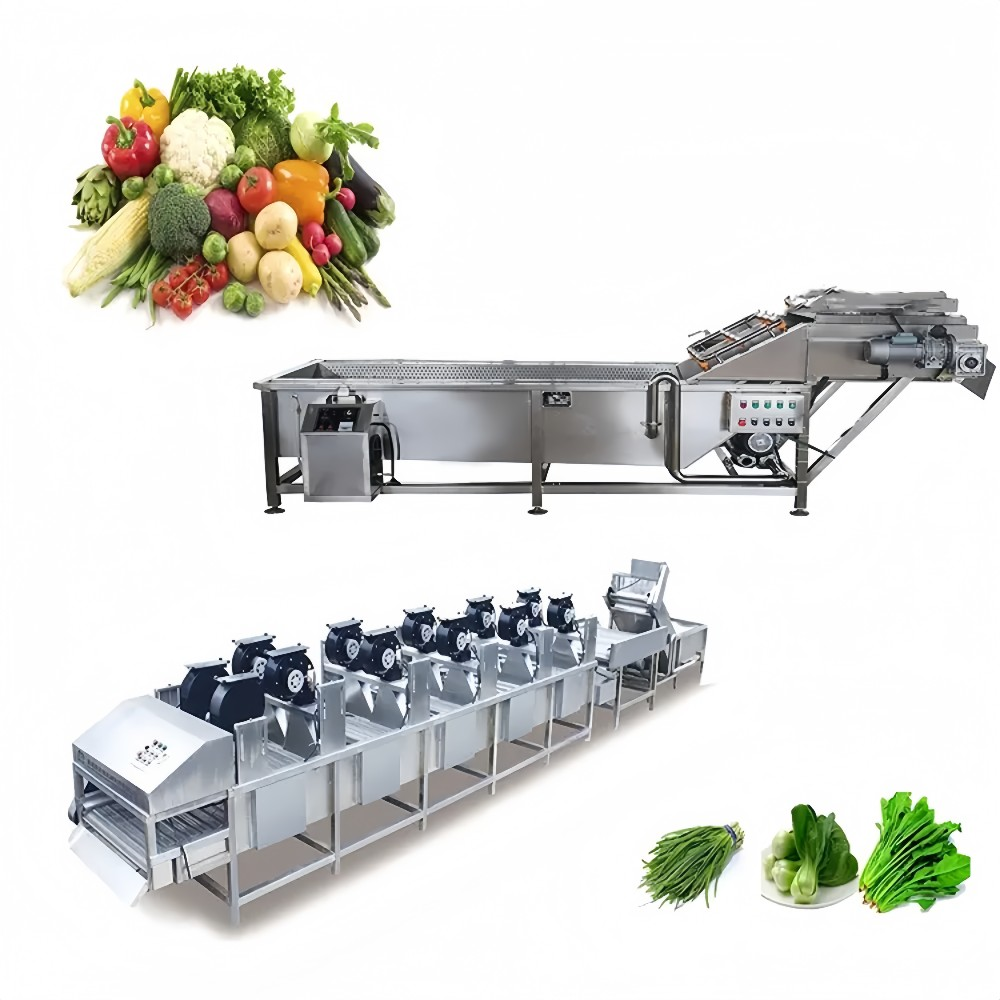

WASHING SYSTEM SPICES AND VEGETABLES :

Elevate your fruit and vegetable processing with FOOD PROTECH, India’s trusted manufacturer of high-performance machinery. Equip your facility with our advanced washing machines, air dryers, juice extractors, juice filling machines, and Fruit Juice Sterilization Machines, all crafted for efficiency and durability. Choose our reliable and innovative Automatic Juice Filling Machine to boost productivity and ensure consistent quality. Every machine is designed to enhance output and support businesses in meeting industry standards with ease and reliability.

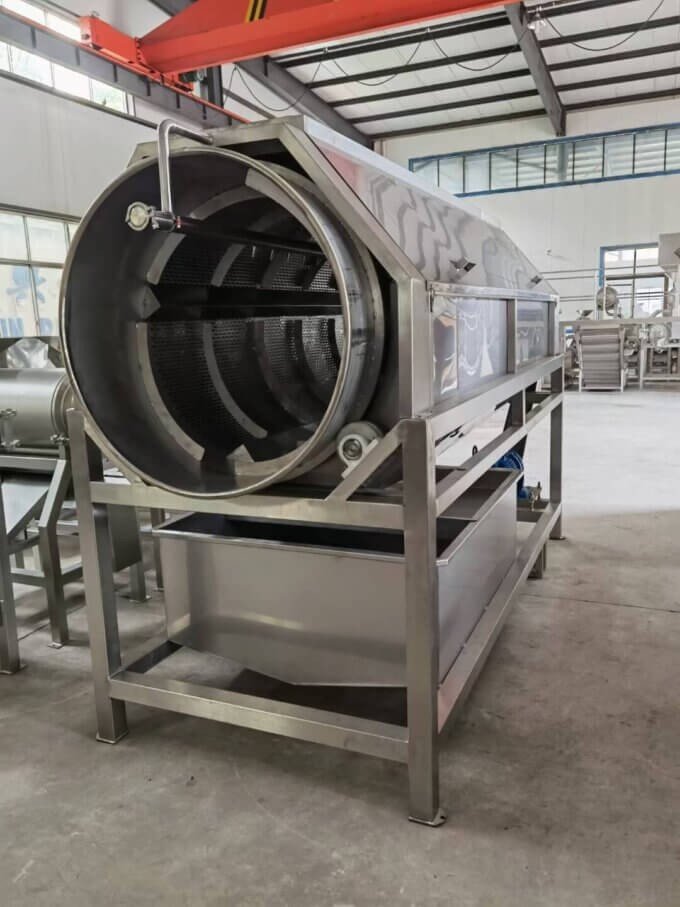

Characteristics

  • Rinsing the produce by friction in a rotating drum
  • Variable speed control
  • Round or octagon shape of drums are available to choose from
  • Construction of the drum can be U profile or perforated
  • Cleats available to control flow produce on outfeed of drum
  • Cleats inside the drum provide good agitation of produce
  • Manual or automatic outfeed drum valve

The wet hopper is designed for pre-soaking produce with air agitation to softer soil and acts as a buffer for constant flow. The produce enters the wet hopper through options like hopper, conveyor, or destoner and floats towards the outlet conveyor via a pump that creates water flow. While dirt sinks to the bottom of the wet hopper. Depending on the soil type, built-in air agitation cleans or pre-cleans the produce.

The standard machine is supplied with a stainless steel AISI304 frame, and bearings and drive/idle rollers are of mild steel. The product conveyor is made from mild steel, but on demand, it can be made from stainless steel AISI304, covered with rubber. The cleats height is 50 mm.

Characteristics

  • Models are available in 2 and 4 tons
  • The wet hopper is designed for pre-soaking produce
  • Durable, robust, stainless steel construction
  • Heavy-duty web belt with rubberized bars
  • Easy access for cleaning and maintenance with access hatches
  • Easy access for cleaning and maintenance with access hatches

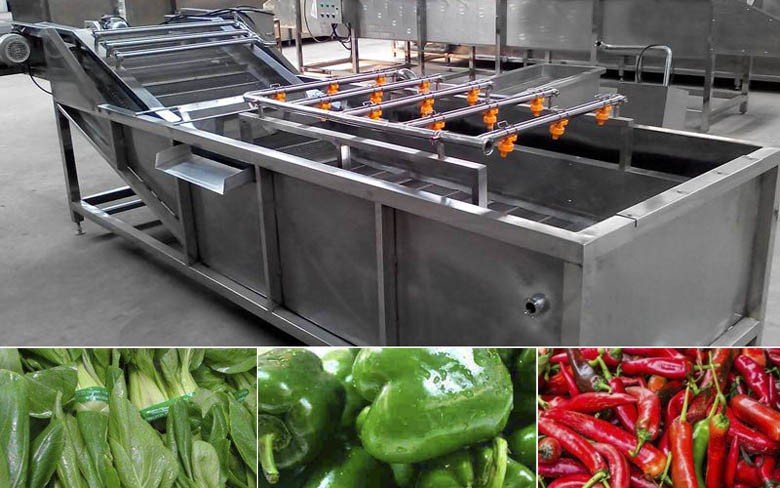

ROTARY WASHER WITH SPRAY SYSTEM

Specially designed to wash all type of fruit & Vegetables root veg. as well as standard fruits & vegetable. There is a stainless steel tank in which a modular conveyor is running in deep of water with having the babble system for proper washing of fruits through blower system. There are clichés which convey the fruit to the end of washer. This conveyor will drop the fruits to your inspection conveyor.

  • It is completely made of SS 304 sheet with the all standard blower’s geared motors and food grade belt. Total electrical load 1 HP to 5hp
  • water holding capacity 200 Ltrs
  • Water filtration and recirculation system
  • Variable speed drive
  • Capacity – 1000Kg/Hr.

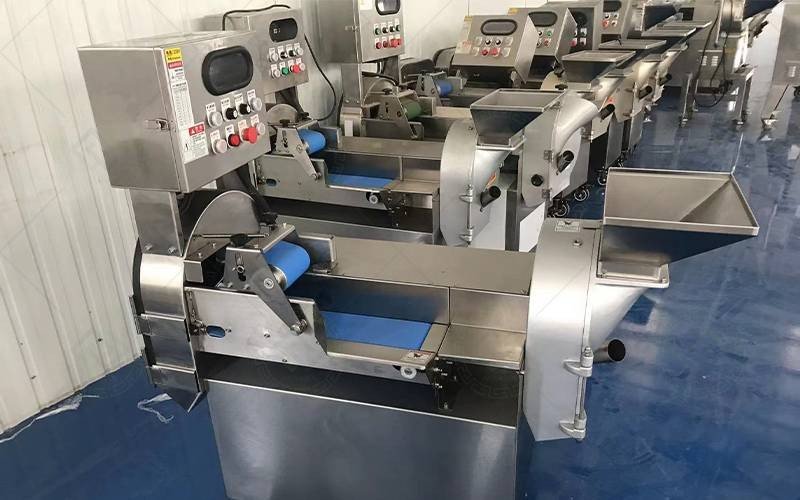

VEGETABLES & SPICES CUTTING MACHINE :

WPS-800 MULTI FUNCTIONAL VEGETABLE CUTTER: - Specially designed to cut fruits & vegetables into desired shape & size with slicing attachment of cubing, shredding and finger in one single machine with conveyor system complete with motor and gearbox, complete made of stainless steel.

Vegetable Cutting Capacity 150 – 500 kg/hr 150 – 500 kg/hr
Type of Machine All Vegetable Slicer
Motor Power 1 HP to 10 HP
Cutting Shapes SLICE-CUBE-FINGERS
Material Stainless Steel
Automation Grade Automatic
Usage/Application Caterers & Canteens/Restaurants
Capacity 150-500 KG/HR
